From Data to Design to Asset: Reinventing Rail Infrastructure with BIM

In today’s era of smarter, faster, and more sustainable infrastructure, traditional methods of planning, designing, and managing railway systems are rapidly becoming obsolete. With complex requirements, high passenger volumes, and precision-based operations, modern mass transit projects demand a transformative approach. Recognizing this, the EDRC RBG team at L&T has been leading several digital engineering initiatives—with Building Information Modeling (BIM) at the core.

BIM, far beyond being just 3D modeling, represents a structured digital process that integrates multidisciplinary data across the asset lifecycle—from design and construction to operations and maintenance. It has the potential to unify teams, reduce inefficiencies, and deliver infrastructure that is both intelligent and future-ready.

Authored by
Nikhil Jose
Lead Engineering Manager - Track

The Pain Points: Fragmented Tools, Frustrated Teams

Railway projects are massive and intricate—spanning kilometers of tracks, stations, tunnels, and structures, each with unique geometric, spatial, and regulatory challenges. Traditionally, engineers have tackled this complexity using a disjointed set of tools and workflows:

Key Challenges:

  • Isolated Platforms Terrain and alignments are designed in Civil 3D or OpenRail Designer; Revit handles structural modeling; Excel manages tabular data. These systems don’t communicate natively.
  • Manual-Intensive Tasks Drawing production, model updates, and quantity take-offs require long hours—modeling just 1 km of trackwork manually can take up to 15–20 man-days.
  • Frequent Revisions Any field change or design adjustment triggers a time-consuming cascade of remodelling, redrafting, and reporting.
  • Incomplete Metadata Maintenance schedules and installation guidelines are often added post-design, leading to misalignments and inefficiencies during execution.

These challenges result in delayed timelines, increased costs, and disjointed data handovers.

The Breakthrough: A Connected, Automated BIM Workflow

To overcome these barriers, the EDRC RBG team engineered a fully automated, end-to-end BIM workflow that integrates Civil 3D / OpenRail Designer, Revit, Excel, and Dynamo. The result is a seamless, intelligent pipeline from raw survey data to a data-rich 3D model—and beyond.

Flow chart showing conventional BIM 4D workflow

Key Workflow Highlights

  • Smart Data Preparation Survey and alignment data are organized in structured Excel templates and imported into Civil 3D / OpenRail Designer for geometric modeling.
  • Automated Chainage Calculations A custom VB macro computes accurate chainages for components like plinths, slabs, and fastenings—eliminating manual calculations.
  • Parametric Model Generation in Revit Dynamo scripts convert this data into intelligent Revit families for rails, plinths, and fastenings—automatically placed with precision.
  • Instant Drawing Production Shop drawings are extracted directly from the model. If revisions are needed, a simple re-run of the script updates everything.
  • Embedded Quantity Takeoffs & BBS Quantities for concrete, steel, and rebar are auto-generated, ensuring Bill of Quantities (BOQ) and Bar Bending Schedules (BBS) are always aligned.
  • Integrated Asset Data Asset specifications, installation info, and maintenance data are embedded into the model. Dynamo is used to populate these details and generate CoBie-compliant reports for downstream systems.

This workflow ensures consistency across models, drawings, reports, and asset data with minimal manual intervention.

A Real-World Example: Mumbai Metro Line 3

A prime example of this integrated BIM-to-Asset Management approach is the Mumbai Metro Line 3, India’s largest and most complex fully underground metro corridor, spanning 33.5 kilometers and cutting through the dense urban fabric of Mumbai.

The project showcases how a digital-first mindset can transform not just design and construction, but long-term operations and maintenance. The EDRC RBG team implemented an end-to-end digital workflow that took the project from design coordination to a fully operational Digital Twin.

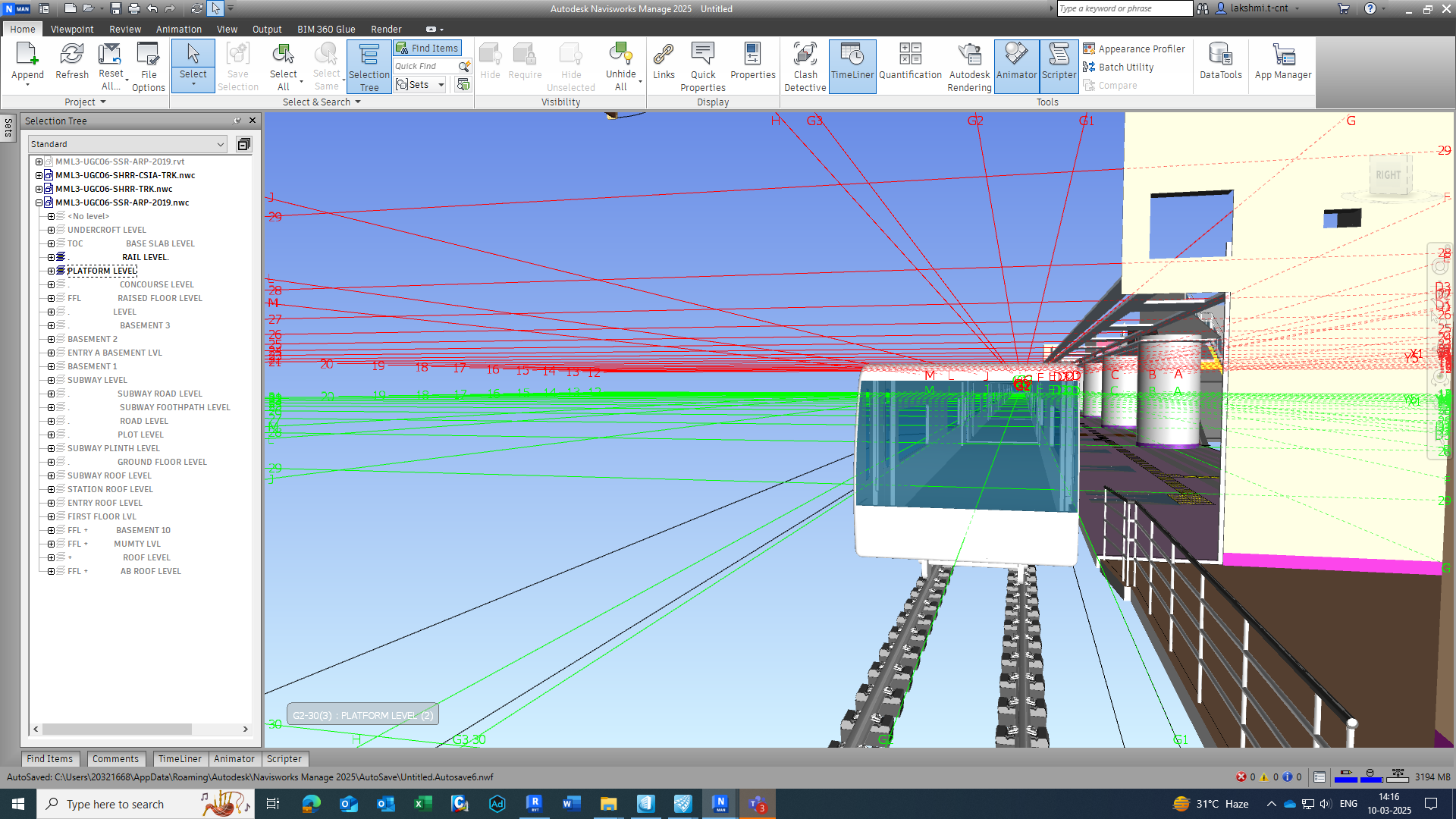

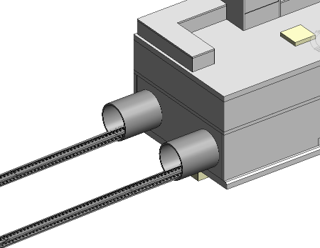

Integrated 3D Model with Rolling Stock

Step-by-Step Transformation: From LOD 300 to LOD 500

  • Initial Modeling (LOD 300) The project began with the development of coordinated BIM models at LOD 300 for all Track components—including Rail, Fastening, Booted sleepers, Track bed, Drainage, and auxiliary structures. These models were used for clash detection, design validation, and construction planning.
  • As-Built Data Collection & Processing During and post-construction, as-built survey data was meticulously collected. This data captured the actual field conditions—dimensions, placements, and alignments—down to the smallest deviation from design.
  • Automated As-Built Modeling using Dynamo The collected as-built data was processed and fed into customized Dynamo scripts, which enabled automated updating of BIM models in Revit to reflect LOD 500 standards. This drastically reduced manual modeling time and ensured accuracy.

Enriching the Model for Asset Intelligence

Each model element was enriched with a wide range of asset-specific metadata—not as an afterthought but as a planned and systematic phase of the workflow. Through detailed discussions and workshops with the employer, a robust asset data framework was finalized to align with long-term Operations & Maintenance (O&M) needs.

Parameters finalized for capture included:

  • Over 3 lakh uniquely coded assets mapped to BIM elements
  • Material specifications, source details, and grade classifications
  • Installation dates, approved procedures, and responsible subcontractors
  • Warranty periods, terms, and service provider contacts
  • Maintenance protocols , frequencies, required tools, and labor categories
  • Failure codes and troubleshooting logic for each maintainable component

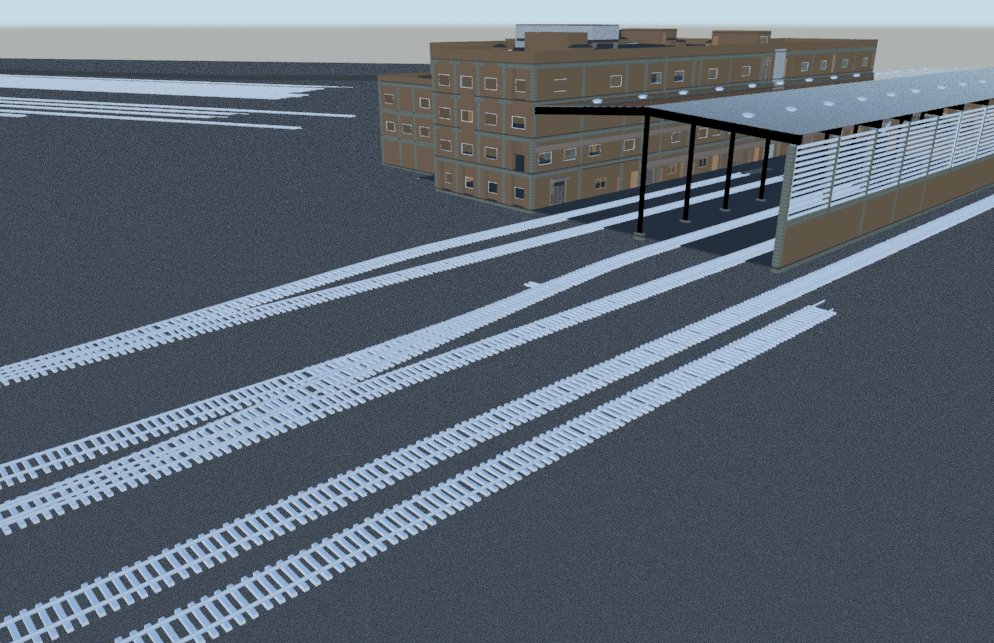

As Built Model of Depot

Seamless Integration with CAMS & Maximo

  • Using Dynamo scripts, all asset-related information was embedded into the Revit model in a structured format.
  • CoBie-compliant reports were then generated automatically and mapped to the CAMS (Combined Asset Management System) framework, as per the employer’s specified schema.
  • The final asset models were linked to IBM Maximo, the employer’s preferred asset management platform—creating a fully integrated Digital Twin environment that is now used for:
    • Real-time operations tracking
    • Preventive and predictive maintenance
    • Warranty claim management
    • Condition-based inspections and interventions

Tailoring As-Built Modeling for O&M

The as-built modeling methodology itself was refined over time to meet the operational requirements of the CAMS platform. This included:

  • Capturing relationships between systems and subsystems
  • Differentiating between maintainable and non-maintainable assets
  • Ensuring traceability from construction stage to lifecycle stage

Asset Management by Design, Not Afterthought

What sets this initiative apart is its proactive integration of asset data—right from the design stage. Rather than treat asset management as a post-construction task, the EDRC team embedded operational intelligence into every element of the model.

Benefits:

  • Lifecycle Visibility Track each asset from installation through maintenance to decommissioning.
  • Predictive Maintenance Use embedded failure codes and service data to prevent breakdowns.
  • Regulatory Compliance Store certificates, maintenance logs, and warranties directly within the model.
  • Effortless Handover Provide the operations team with a model that is not only geometrically accurate but also operationally rich.

Scalable, Sustainable, Skill-Agnostic

Another key advantage of this BIM approach is its scalability and accessibility. Junior designers can now execute tasks that previously required senior engineers—thanks to:

Benefits:

  • Adaptive Revit Families that adjust to data inputs.
  • Reusable Dynamo Scripts to automate repetitive tasks.
  • Standardized Excel Templates for input data.

This methodology is:

  • Repeatable across different cities, systems, and geographies.
  • Scalable to include signaling, telecom, traction, and power.
  • Sustainable, reducing rework, errors, and coordination gaps.

Conclusion: A New Era for Transit Infrastructure

By unifying data, design, and asset management through a connected, intelligent BIM workflow, the EDRC team at L&T has redefined what's possible in large-scale rail projects. This initiative not only accelerates delivery and improves quality but also ensures long-term asset readiness—setting a new benchmark for infrastructure in the digital age.
This isn’t just a workflow improvement—it's a leap toward smart, scalable, and sustainable infrastructure.

;
